Fitel S124M12 Ribbon Splicer

Authorized OFS Fitel Fusion Splicer Distributor

Hand-Held Mass Ribbon Fiber Fusion Splicer - Designed With The Contractor In Mind
Authorized OFS Fitel Distributor

The powerful FITEL S124M12 Hand-Held Ribbon Fiber Fusion Splicer delivers fast and reliable optical fiber splicing even under harsh environmental conditions. Offering a wide range of capabilities, this fusion splicing machine opens the door to an entirely new range of applications.

The S12412 Ribbon Splicer Used For A Variety Of Applications Including Data Centers, Metro, Backbone & Long-haul

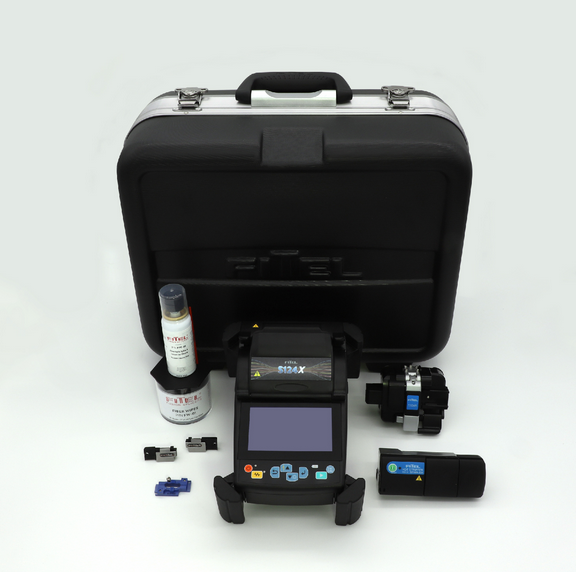

Fitel S124M12-200/250 KIT Ribbon Splicer Kit $15,060

Fitel S124M12-200-250-Kit Splicer Kit

Fitel S124M12-200 KIT Ribbon Splicer Kit $13,780

Fitel S124M12-200-Kit Splicer Kit

S124M12 200um and 250um Ribbon Fusion Splicer Kit
Includes:

* S124M12 Splicer Body (FVG-12-P250 is installed)
* HCC-11 Hard Carrying Case
* S218R-200 Thermal Stripper
* S326R One-Action Precision Cleaver for Ribbon fiber
* S712A-12e 12-Ribbon Fiber Holders (pair)
* S712A-12e-P200 200um ptich 12-Ribbon Fiber Holders (Pair)
* FVG-12-P200 200um pitch 12-Vgroove for S124M12
* CTX-03 Cooling Tray
* S947B Li-ion Battery
* S979A AC Adapter for S124M12
* ELR-01 Spare Electrodes
* D5111 Electrode Cleaning Disk
* FPF-01 Fiber Preparation Fluid
* FW-01 Fiber Wipes
* VGC-01 V-Groove Cleaning Brush

S124M12-200-KIT Ribbon Fusion Splicer Kit
Includes:

* S124M12-P200 Splicer Body (FVG-12-P200 is installed)
* HCC-11 Hard Carrying Case
* S218R-200 Thermal Stripper
* S326R One-Action Precision Cleaver for Ribbon fiber
* S712A-12e-P200 12-Ribbon Fiber Holders (pair)
* CTX-03 Cooling Tray
* S947B Li-ion Battery
* S979A AC Adapter for S124M12
* ELR-01 Spare Electrodes
* D5111 Electrode Cleaning Disk
* FPF-01 Fiber Preparation Fluid
* FW-01 Fiber Wipes
* VGC-01 V-Groove Cleaning Brush

Fitel S124M12-KIT Ribbon Fusion Splicer Kit $13,780

Fitel S124M12 Ribbon Splicer Kit

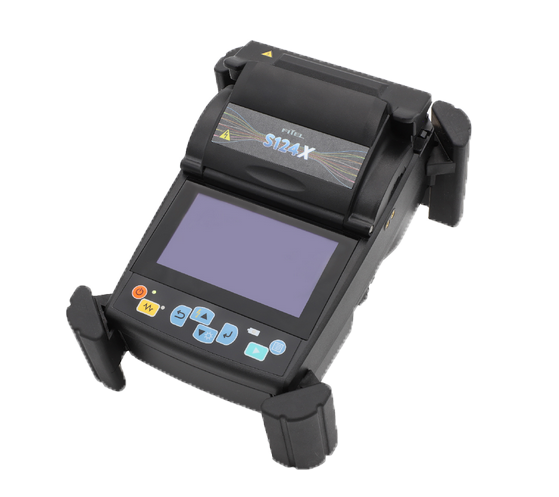

Fitel S124M12 or S124M12-P200 Ribbon Splicers $12,000

Fitel S124M12 Splicer

S124M12-KIT Ribbon Fusion Splicer Kit
Includes:

* S124M12 Splicer Body (FVG-12-P250 is installed)
* HCC-11 Hard Carrying Case
* S218R-200 Thermal Stripper
* S326R One-Action Precision Cleaver for Ribbon fiber
* S712A-12e 12-Ribbon Fiber Holders (pair)
* CTX-03 Cooling Tray
* S947B Li-ion Battery
* S979A AC Adapter for S124M12
* ELR-01 Spare Electrodes
* D5111 Electrode Cleaning Disk
* FPF-01 Fiber Preparation Fluid
* FW-01 Fiber Wipes
* VGC-01 V-Groove Cleaning Brush

The Fitel S124 Mass Ribbon splicer is designed with the contractor in mind, additional lighting, a larger splicer platform, and 1.96 Newton motor strength to move even the heaviest of cables. Fitel offers removable holders that allow the splicing of 1-12 fibers with ease, with the options of both 250um and 200um pitch V-grooves.

S124M12

S124M12, Fusion splicer for splicing 250um coating pitch ribbon fiber up to 12- ribbon (NO HOLDERS)

S124M12-P200

S124M12, Fusion splicer for splicing 200um coating pitch ribbon fiber up to 12- ribbon (NO HOLDERS)

Drop Impact Resistance Performance and Environmental Resistance Performance

Drop Impact: Vertical drop test (5 sides excluding the top side) is conducted from a height of 76 cm and the normal operation is confirmed

Impact Protection: The normal operation is confirmed after dropping a 500 grams weight of IK 07 grade from height of 40 cm onto the equipment

Dust Proof: The normal operation is confirmed after putting the equipment in a device containing dust of 25 μm or less for 8hours

Drip Proof: The normal operation is confirmed after exposing water droplet of IPX 2 grade with 3mm/min to 4 sides for 2.5 min or more tilted by 15 degrees

Fitel S1124M12
Key Features

  • Up to 12-fiber ribbon splicing
  • Rollable Ribbon - It bends, molds and rolls into shapes - combining benefits of loose and ribbon fibers
  • High speed operation of 15 seconds
    fusion splicing
  • Easy exchangeable V-groove
  • 200 µm coating fiber ribbon is
    applicable by exchanging v-groove
  • Easy operation with touch panel and
    GUI mounting
  • 4 LED lamp allows for easy operation
  • Easy maintenance with removable
    V-groove
  • Wi-Fi connectiion allows wireless
    control and data management

Fitel S124M12 Fusion Splicer Spec Sheet pdf small

Fitel S124M12 Features
Fitel Ninja Fusion Splicers > >

Fitel Ninja Fusion Splicer
The FITEL NINJA NJ001-3 Hand-held, Single Fiber Fusion Splicer delivers fast and reliable fiber splicing under even harsh environmental conditions. Combining portability and ease of use in a ruggedized body, the NJ001 offers powerful splicing performance with the durability needed for use in the field.

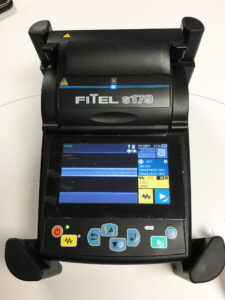

Fitel S179 Fusion Splicer > >

Fitel S179A fusion splicer small

The FITEL S179 Hand-Held, Core Alignment Fusion Splicer combines speed, precision, durability, portability and state-of-the-art communication methods in one unit, this fusion splicing machine opens the door to an entirely new range of applications.

Fusion Splicer Cleaning, Calibration & Repair Services > >

We Offer:

- Low Cost technical diagnosis and estimation of repairs
- Detailed documentation on work completed
- Pre & post sales technical support
