The Next Generation of Future-proof Ribbon Fiber Splicers
AI Powered Nano Tone™
Authorized Reseller

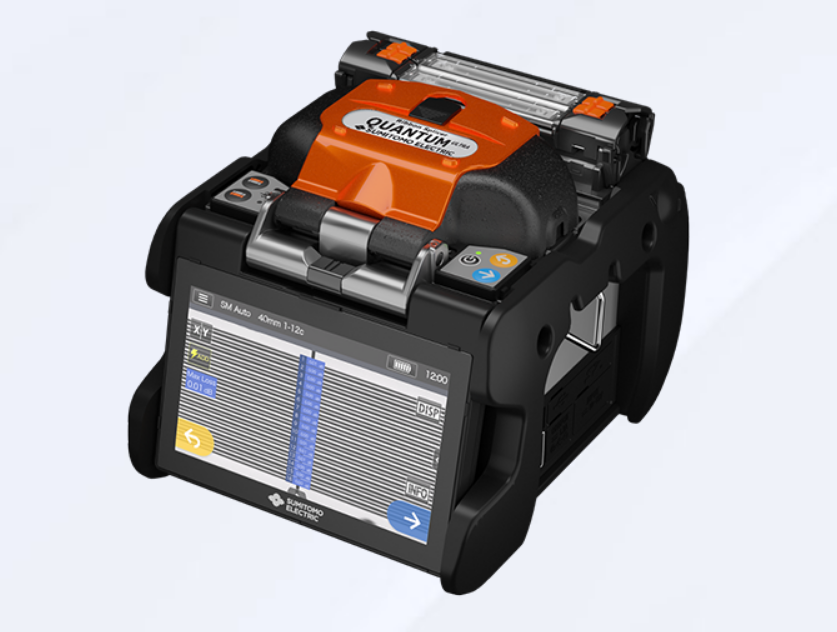

Sumitomo Electric announces the release of the Quantum-Ultra Ribbon.
The next generation of future-proof ribbon fiber splicers. The new AI-enabled splicer with NanoTune™ technology is key to deploying next-generation hyper-scale networks. This future-proof machine has been designed to maximize work efficiency with state-of-the-art technology, including NanoTune™, E-ACAS, dual independent ovens, tool-free replaceable v-grooves, and special coatings. Using replaceable V-groove kits, the splicer becomes highly versatile adapting to fiber counts of up to 16 and 250μm and 200μm pitch ecosystems. The Quantum-Ultra Ribbon is ready to support any network, no matter the fiber count or pitch requirements.
Kit Contents
Quantum ULTRA Ribbon Fiber Splicer for 12f-250μm pitch, Cleaver [FC-6Rp], Remover[JR-7], Fiber holders [FHM-12, FHS-025], Shipping Case, Spare Electrodes [ER-10], Cooling Tray, AC Interface/Battery Charger with Power Cord[PS-Q102], Battery Unit [BU-102], V-groove Cleaning Brush [VGB-004], USB Cable 2.0, Fiber Protection Sleeve [FPS-6], Cleaning Kit [FUS-CLN-KIT-M]
Quantum-Ultra Features
NanoTune™ automatically identifies optimal fusion-splicing conditions based on the fiber’s end face.
When a cleave error is detected, fibers are spliced with an optimized arc condition.
Simple Routine Cleaning
Buildup and dust adheres to V-grooves due to repeated splicing.
Cleaning the splicer is now easier with patented special coatings on the V-grooves and microscope lenses.
Additionally, the microscope lens has an anti-scratch and anti-fog coating that preserves image quality for superior splicing.
Auto-clamping adjustment system (ACAS) automatically optimizes the clamping pressure according to the number of fibers.
Additional horizontal fiber movement helps the fiber align properly on the high-precision V-Groove by removing dust and debris.
ACAS helps prevent fiber offset which increases splicing success rate and lower splice loss.
Tool-Free V-groove Replacement
Replaceable V-grooves allow for increased versatility required when splicing ribbon fiber.
V-groove is interchangeable between 200 and 250-micron pitch.
