Fitel High Precision Fiber Optical Cleavers For Single to 12-Fiber Ribbon Including Roll-able Ribbon
Authorized Fitel Distributor

Contact FORC Transparent

Fitel High Precision S326 Optical Fiber Cleaver

Fitel S326 Cleaver

High Precision S326 Optical Fiber Cleaver With its ergonomic and light weight design, the S326 cleaver offers the operator the versatility to cleave on a work bench or in the palm of their hand. With 24 positions, the long life-time blade achieves 48,000 fiber cleaves. The S326 cleaver can offer optical fiber cleaving for a full range of OSP and OEM applications.

Models
S326A: 125μm clad diameter fiber - $680
S326S80: 80μm clad diameter fiber - $980

S326 Optical Fiber Cleaver Features

  • Cleave anywhere
  • Simple operation
  • Easy fiber loading
  • Durable and reliable design
  • Wide lid opening
  • Long blade life
  • Light weight (About 30% reduced from previous model)
  • High capacity waste bin
  • RoHS compliant

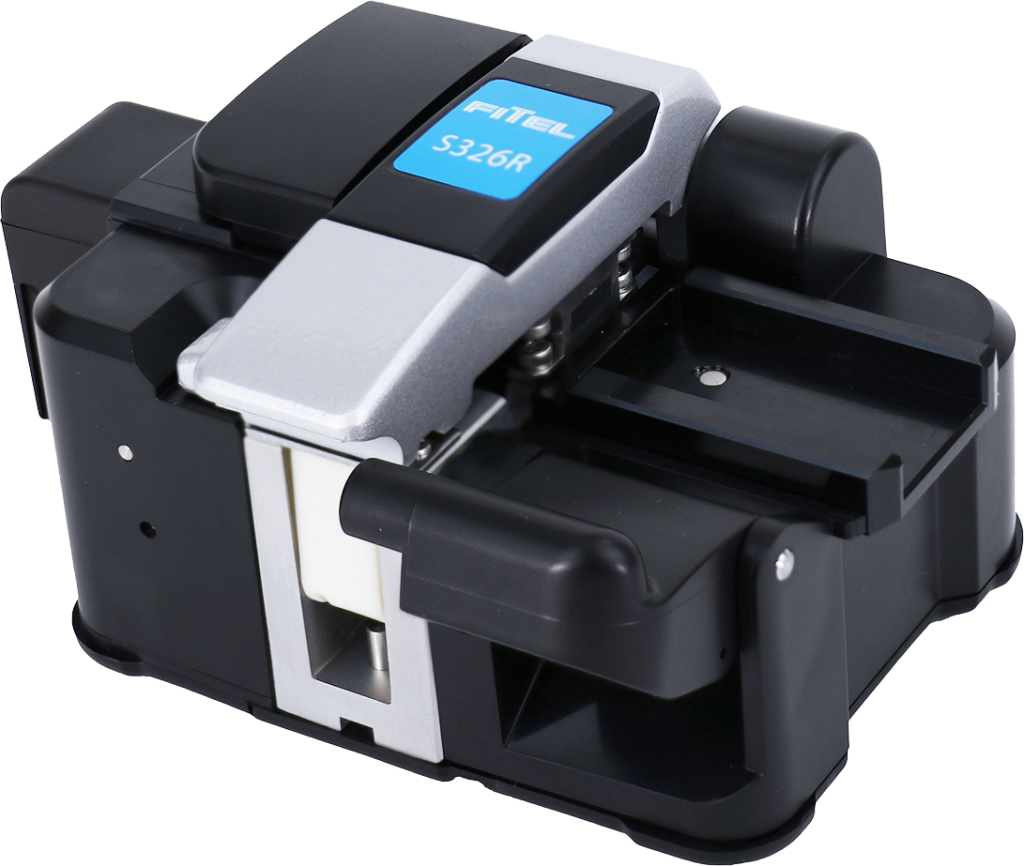

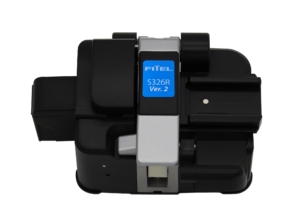

Fitel High Precision S326R Optical Fiber Cleaver

Specifically designed to handle 200um and 250um Rollable Ribbon fiber with ease.With its ergonomic and light weight design, the S326R cleaver offers the operator the versatility to cleave on a work bench or in the palm of their hand. The precise fiber alignment system and re-designed cleaver blade allow for easy fiber loading and improved stability resulting in better single and ribbon fiber cleaves, particularly for Rollable Ribbon. Just pressing the lever completes the fiber cleave and automatically collects the waste in the Anti-static coated waste bin. The S326R blade achieves numerous cleaves with 24 positions and can easily be replaced in the field.

Model
S326R 1-Action Precision Cleaver
for Ribbon fiber - $760

S326R Optical Fiber Cleaver Features

  • 200 μm and 250 μm ribbon fiber compatibility
  • Precise fiber alignment mechanism
  • Field replaceable blade
  • High capacity Anti-static waste bin
  • Simple one step operation
  • Durable and lightweight design

S326R Specifications

Applicable Fibers All fiber types
Fiber Count Single to 12 ribbon fiber (Flat and Rollable Ribbon)
Clad Diameter 125 μm
Coating Diameter Single Fiber: 200 to 900 μm
Ribbon Fiber: 200 to 400 μm (thickness)
Cleave Length Single Fiber: Fixed Length 10 mm
Ribbon Fiber: Fixed Length 10 mm
Blade Life 148000 fibers (2000 fibers X 24 positions) 4000 ribbon fiber cleaves

The S326R cleaver offers superior optical fiber cleaving for a full range of OSP, OEM, and Data Center applications.
Fitel S326R Fiber Cleaver

Fitel S310 & S315 Optical Fiber Score and Snap Field Cleavers

The FITEL S310 and S315 Single Fiber Field Cleavers are designed for cleaving fiber in the field quickly and easily. The S310 and S315 Field Cleavers can accommodate 0.25 mm and 0.9 mm coating diameters and their small lightweight size makes them the perfect addition to any field splicing system. The S310 and S315 field cleavers require some skill to achieve the de-sired cleave angle and may not be appropriate for some splicing applications. The S310 is specifically designed to cleave fiber in the field accurately to a 16 mm length. The S315 has a graduated scale, which allows for cleave lengths of 5 to 20 mm.

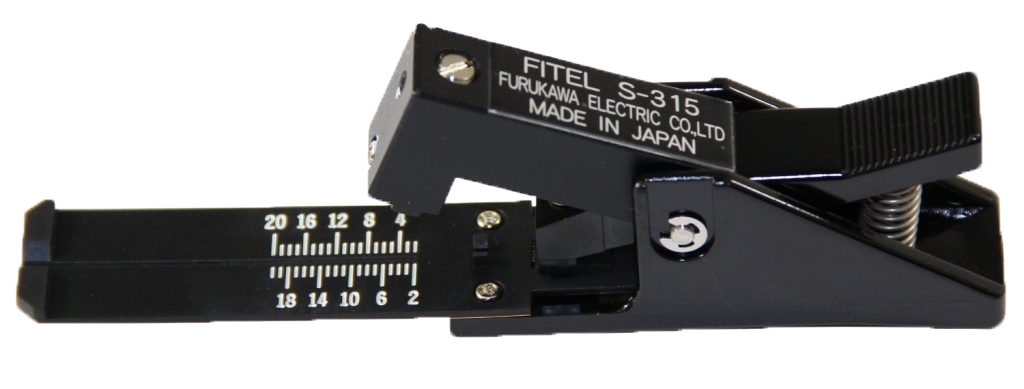

Fitel S315 Score & Snap Single Fiber Field Cleaver - Buy Now $185

Fitel S315 Fiber Optic Cleaver

Fitel S315 Features:

  • Graduated Scale
  • Accommodates 900μm or 250μm coated fibers
  • Ideal for Mechanical Splices or Quick Term Connectors
  • Cleave lengths of 2 – 20 mm

Fitel S310 Score & Snap Single Fiber Field Cleaver - $180

Fitel S10 Fiber Optical Cleaver

Fitel S310 Features:

  • Accommodates 900μm or 250μm coated fibers
  • Ideal for Mechanical Splices or Quick Term Connectors
  • For cleaving 16 mm length

We Offer Repair & Calibration Services
