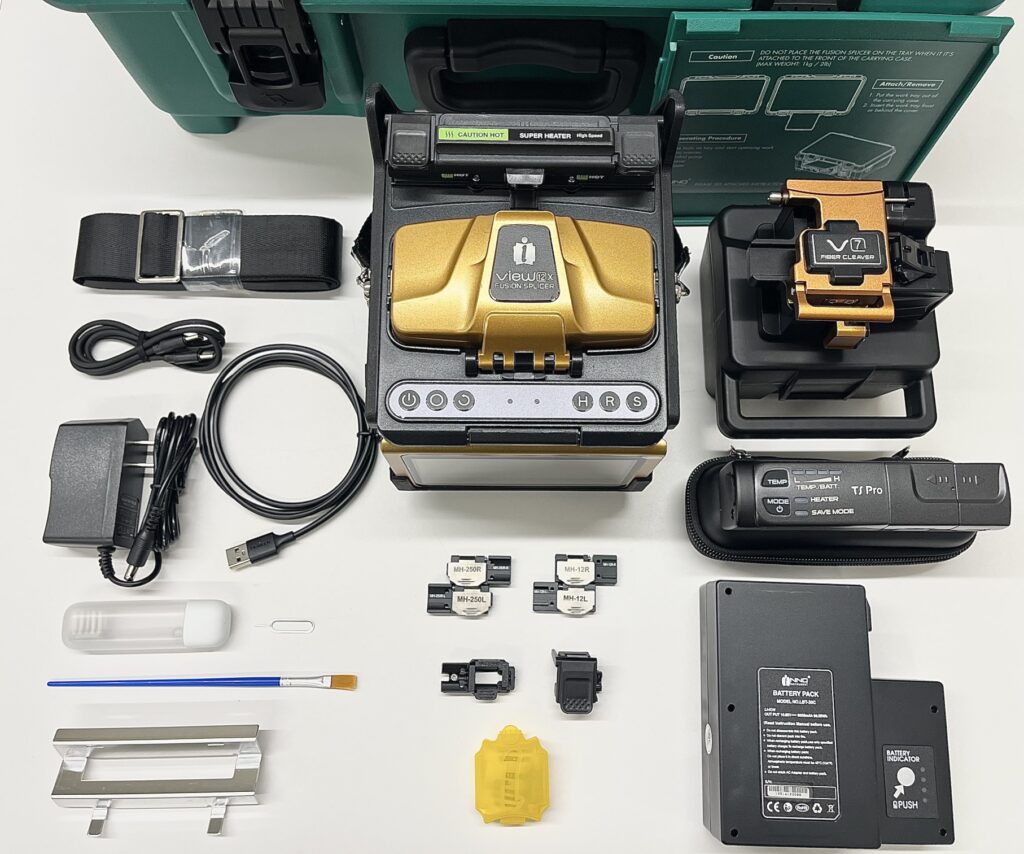

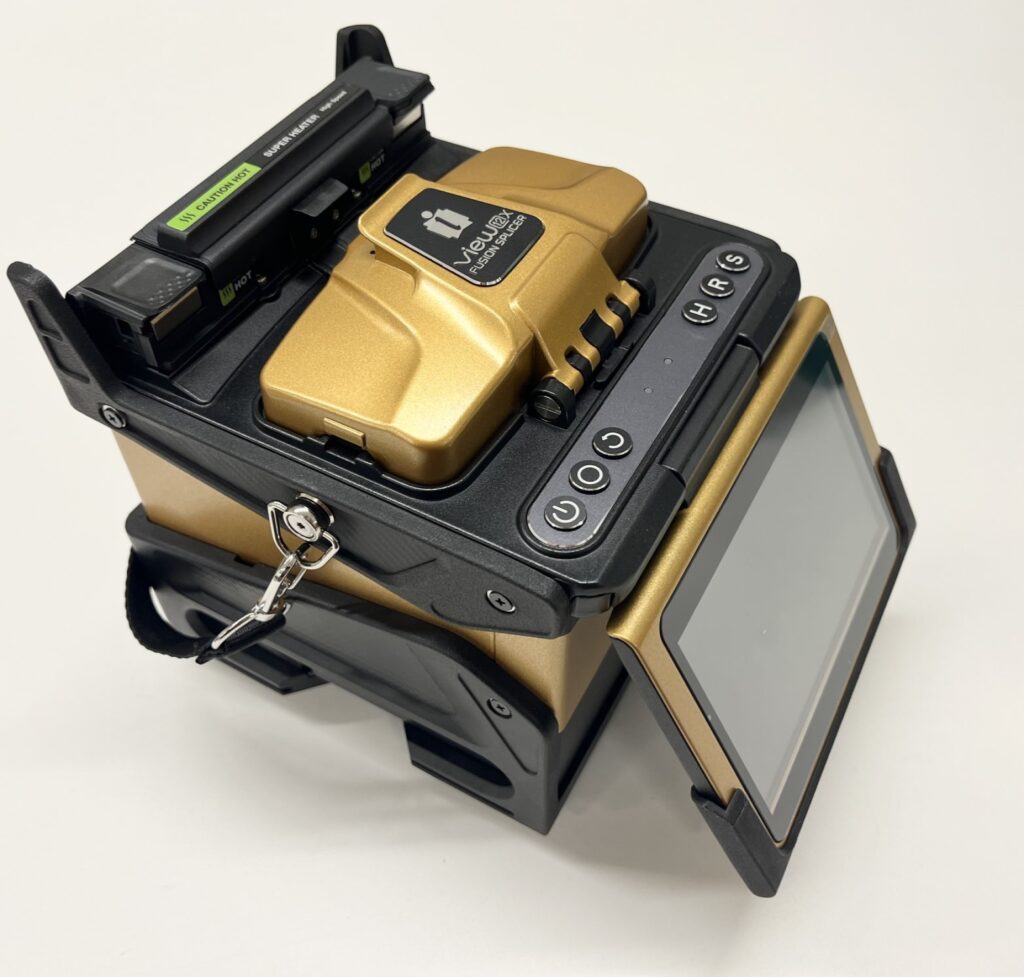

INNO View 12X Ribbon Splicer – $15,995

The View 12X is built to meet the demands of modern ribbon fiber splicing – where precision, performance, and productivity must work in perfect sync. As the most advanced ribbon splicer in the View Series, it combines cutting-edge technology with unmatched usability to tackle the toughest jobs in today’s fast-moving fiber optic industry.

Equipped with a fully motorized clamp alignment system, the View 12X ensures highly accurate and dependable splicing of up to 12 fibers at once. With the world’s highest magnification for a ribbon splicer – up to 250x – it offers powerful zoom and scrolling capabilities for exceptional visibility and control.

Designed for high-volume operations, it delivers fast splicing and heating cycles, plus an extended battery life of up to 220 splice-and-heat operations per charge. Its range of multiple applicable fiber holders, makes it a versatile tool for a broad range of jobs.

Whether you’re building large-scale networks or managing complex fiber configurations, the View 12X delivers the speed and precision professionals rely on.

Fusion Splicer
Splicing Technology - Ribbon Fusion Splicer
Splicing Time - Ribbon: Avg. 13 sec | Single : Avg. 7 sec
Heating Time - 15s (60mm slim) | 20s (Single rod ribbon sleeve)
Typical Loss - SM: 0.05dB / MM: 0.02dB / DS: 0.08dB / NZDS: 0.08dB / G.657: 0.05dB
Dimensions
Size (HWD) - H: 162mm W: 143mm D: 158mm
Weight - 2.68kg (with battery)

Key Features:
Real-time Splice Data: Access and store detailed splice records and other technical details in real-time.
Splice Image Sync: Auto-sync splice images with cleave angles and loss estimates.
Full Access Control: Manage permissions with supervisor-mode.
Anti-theft Protection: Lock, track, and protect devices with secure remote controls.
Geolocation & Tracking: Monitor current and past device locations.
Job & Task Management: Assign and track tasks with live location sharing for smooth team coordination.
Preventive Maintenance: Get real-time equipment health alerts powered by AI.
Live Messaging: Send direct messages to splicers in the field for better communication.
Service Request: Submit instant diagnostics to INNO support for fast, reliable help.
