INNO M7 Active Clad-Alignment Fusion Splicers
Only $3000 With a 3 Year Warranty!
This small but accurate fusion splicer with remarkable functionalities include a 4.3 inch high-resolution color LCD touch screen and a user-friendly intuitive GUI offering large and clear fiber images.
Large Inventory - Ready to Ship!

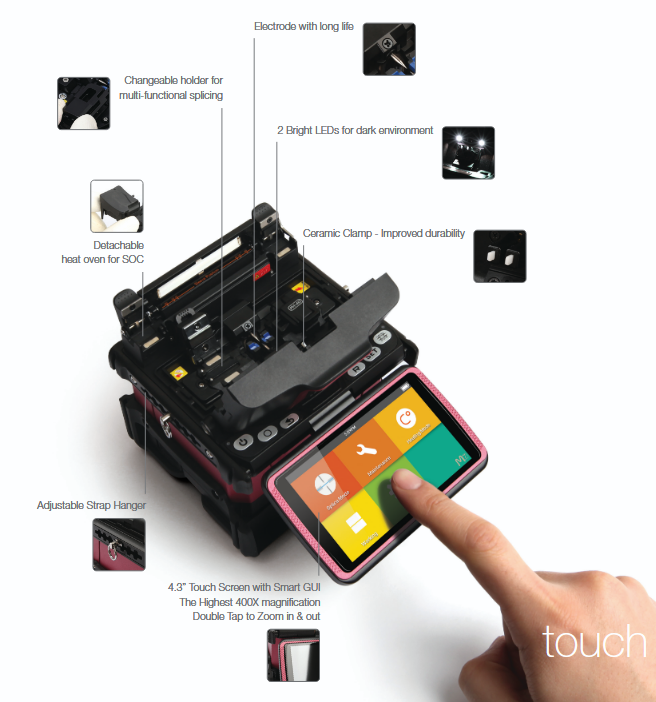

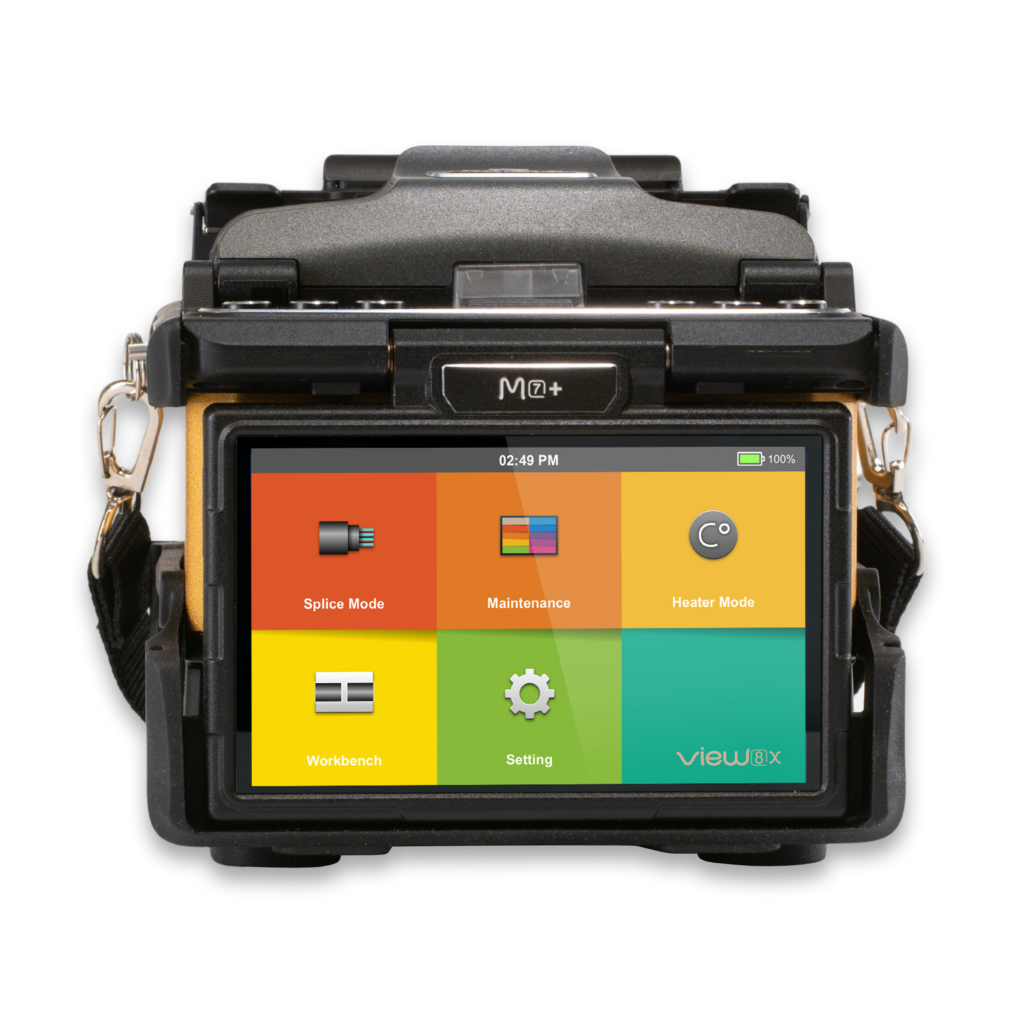

M7 Splicer Overview

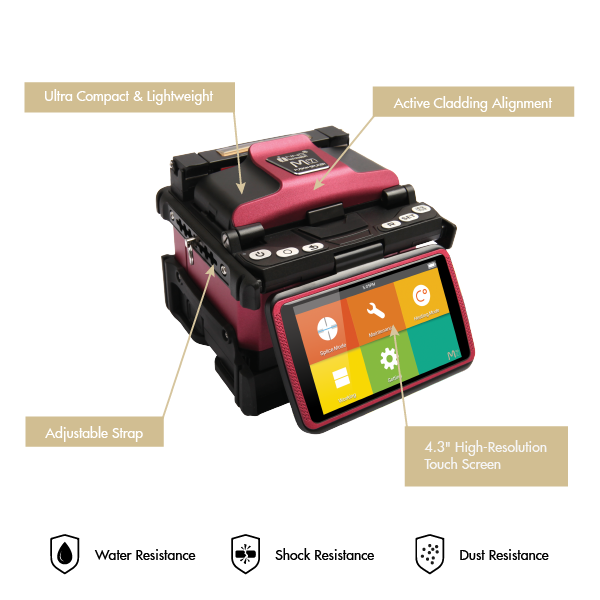

Ultra-Portable Design Active V-Groove Fusion Splicer
Active V-Groove Clad Alignment Splicing Method
Truly Light Weight and Handy Size
Adjustable Strap Hanger
Outstanding Magnification and Resolution

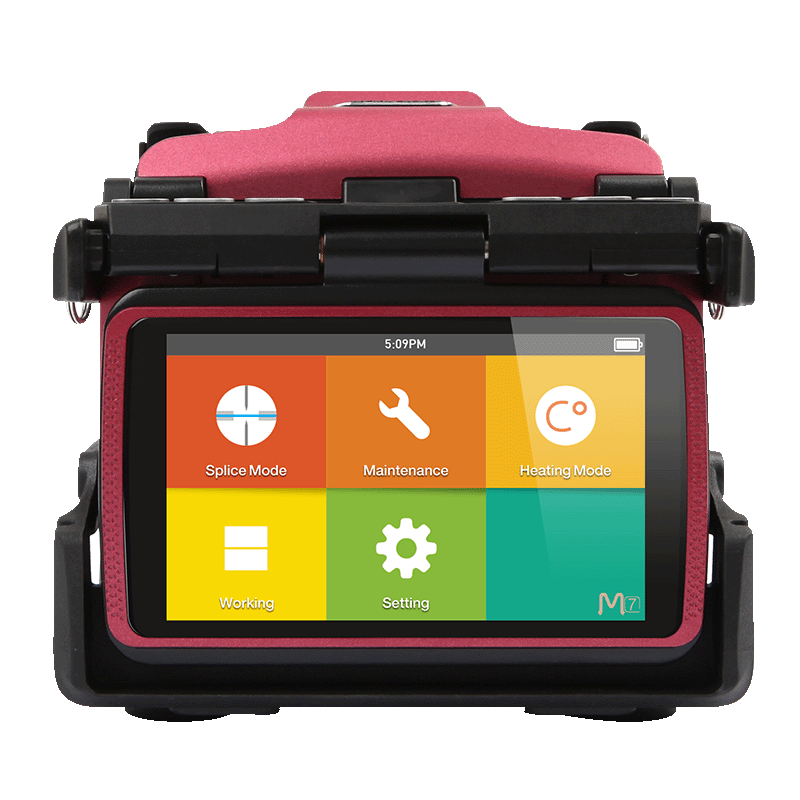

4.3” Color LCD Touch Screen
Double Tapping (Zoom in & out)

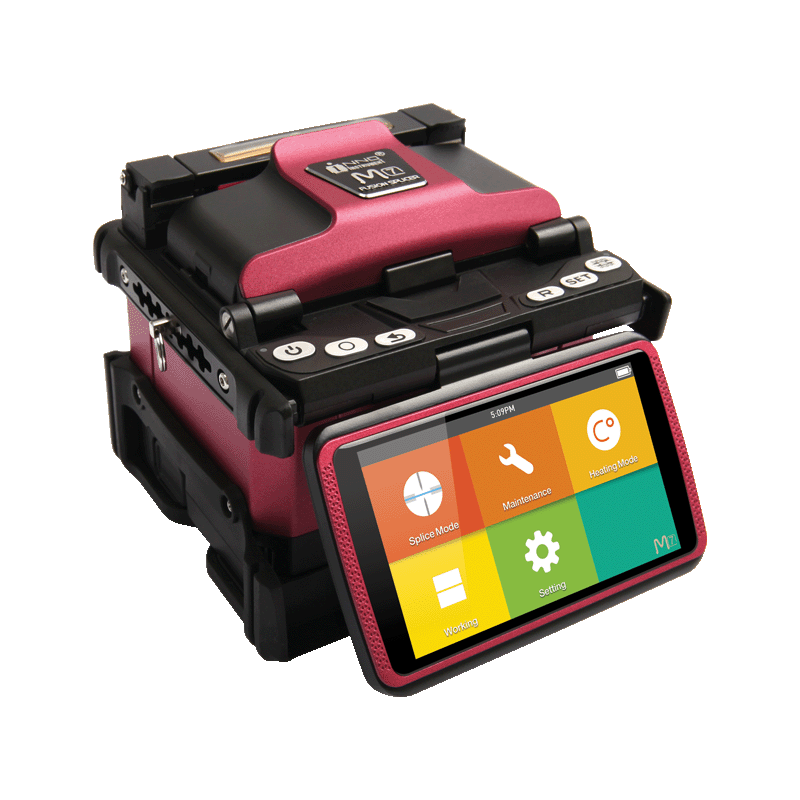

M7, an active clad-alignment splicer with an ultra-portable design, is the most efficient fusion splicer in the market. This small (4.88" H x 5.66" W x 5.15" D and only 3.43 pounds) but accurate fusion splicer with many exceptional functionalities. The M7's high-resolution color LCD touch screen offers large and clear fiber images and by double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 400x. Fiber condition can be easily checked with unaided eyes. Moreover, the adjustable strap hanger make users to customize M7 for their working condition.
Splicing Technology: Active Clad Alignment
Splicing Time: 7sec (quick mode) / 9 sec (typical)
Heating Time: 13 sec (45mm, slim 60mm), 15 sec (60mm)
Typical Loss: 0.03dB(SM) / 0.01dB(MM) / 0.05dB(DS) / 0.05dB(NZDS) / 0.03dB(G.657)

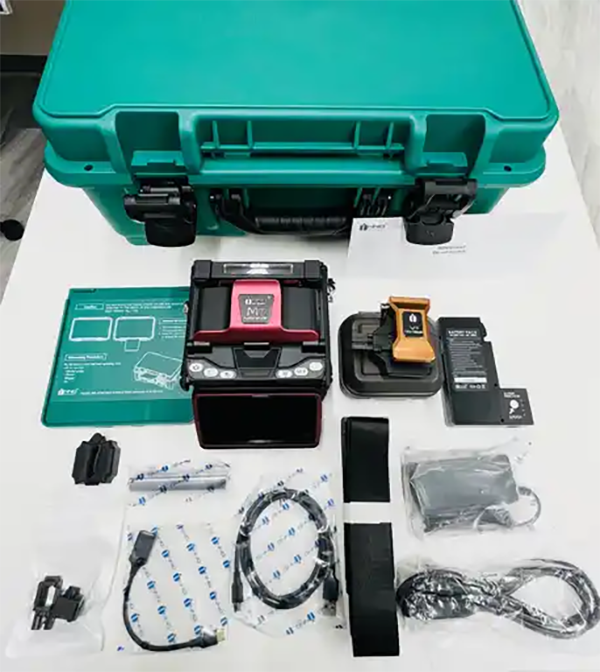

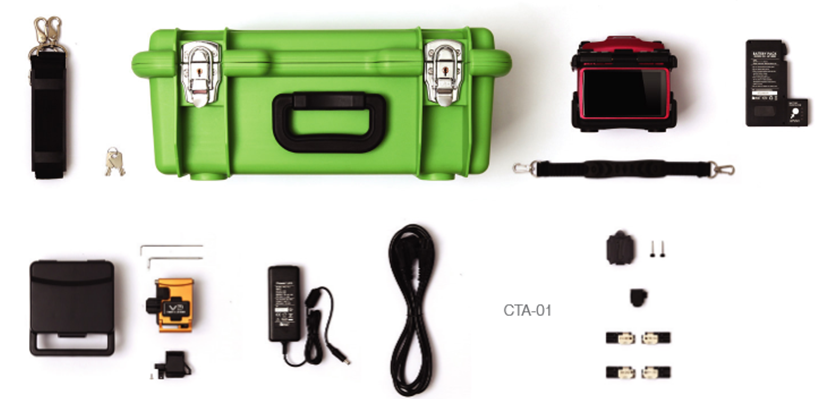

M7 Fusion Splicer Kit Contents
M7 Fusion Splicer
V7 High Precision Cleaver
SC-V7-01 Simple Optical Fiber Collector
FH-200 /250S, FH-900S Fiber Holders
HTN-SOC SOC Heater Cover
JS-1618 AC Adapter
CG-22 Cooling Tray
E-50 Electrodes
LBT-3000 Battery Pack
ACC-25 Power Cable
CTA-01 USB Cable
NBX-M05 Carrying Case
