Sumitomo Type-Q101-CA+ Kit 2R Fusion Splicer

Sorry The Type-Q101-CA+ Kit 2R Splicers Are SOLD!

We Do Have A TYPE-101-CA Available
Click To View Details

Contact FiberOptic Resale Corp

Type-Q101-CA+ Kit2R

Sumitomo Quantum Type-Q101-CA Plus Fusion Splicer Kit Demo Unit 2

Sumitomo Quantum Type-Q101-CA Core Alignment Fusion Splicer Kit Contains

BU-101 | Battery
ER-10 1 pr | Spare Electrodes
FC-7R or FC-6RS Hand-Held Precision Fiber Cleaver
FPS-40-10P 1 pk | Fiber Protection Sleeves (Single Fiber, 40mm, 10 Sleeves)
FPS-1 1 pk | Fiber Protection Sleeves (Single Fiber, 60mm, 50 Sleeves)
Q101-STH-KIT set | Splice Tray Holder
BC-101 set | Dual Bay Battery Charger
FUS-CLN-Kit | Cleaning kit
TQ101 Cordpack | Pack Accessory Q101-CA/M12
Transit Case

Type-Q101-CA Physical Characteristics

Size(mm): 120W x 154D x 130H
Weight: 2.1 kg with Battery (4.6 lbs)
Display Type: 4.1 inch Color, Low Glare, High Resolution Touch Screen Monitor
Shock–Free: Fall 76cm from 5 sides
Waterproof: IPx2
Dustproof: IP5x
Wind Protection: 30 mph (15 m/s)
Battery Docking Bay: Internal

Sumitomo Quantum Type-Q101-CA Plus Fusion Splicer Front Screen Demo Unit

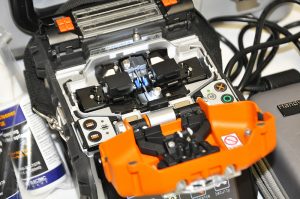

Sumitomo Quantum Type-Q101-CA Plus Fusion Splicer Top Open Demo Unit
Sumitomo Quantum Type-Q101-CA Plus Fusion Splicer Screen Demo Unit

Quantum Type-Q101-CA General Specifications

ROHS
Applicable Fiber Types
Coating Diameter
Cladding Diameter
Cleave Length
Typical Splice Loss, Identical Fibers
Return Loss
Alignment Method
Built-In Splice Protection Sleeve Heaters
Heater Cycle Time
Heater Programs Max
Typical Splice Time
Splice Programs Max
Attenuation Splicing
Interface

Power Requirements
DC (Battery Operation)
Battery Module
Arc Test
Proof Test
Language Selection
Image Display
Internal Splice Data Storage
Image Storage
Electrode Life
Display Positions
Software Update
Remote Maintenance

Compliant
SMF, MMF, DSF, NZ-DSF, BIF/UBIF
100 to 1000 μm
80 to 150μm
5-16 mm
SMF: 0.02dB MMF: 0.01dB NZ-DSF: 0.04dB
<70dB
High Resolution Direct Core Monitoring & 3-Axis Core Alignment
Dual Independent Auto Splice Sleeve Heaters
14 Seconds; 60mm Slim Sleeve
100
6 Second Splice Time
300
0.1 – 15.0dB
Touch Panel Input & Switches Built-in Audio & Video SD Memory Card, USB2.0 (USB-mini B) DC Input for Car Battery Operation
Input: 100V to 240V AC; 50/60 Hz; 10-15V DC
DC200 Splices & Heater Cycles; 600 with External Charger
Li-ion; Arc and Heater Cycle Capacity Number
Auto Compensation for Environmental Conditions
Internal 200g
27
320X Single (zoom700X) and 88X Dual Fiber Imaging; X/Y with 2 Cameras
10000 (Unlimited with SD card)
200
3,000
Adjustable for Optimal Work Flow
Internet
Yes



English English Spanish Spanish
