FC-6S+, FC-6R+, FC-8R High Precision Fiber Cleavers

Authorized Sumitomo Distributor

Contact FORC Transparent

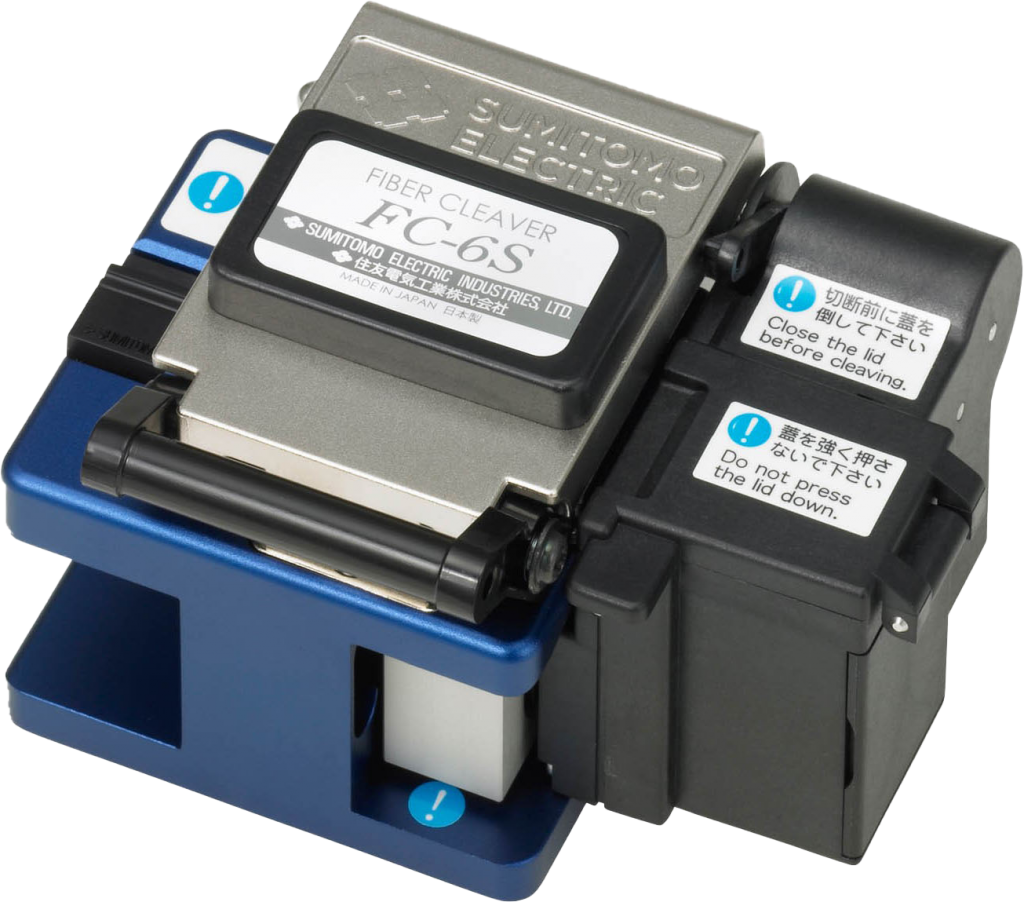

Sumitomo FC-6S+ High Precision Fiber Cleaver
With Fiber Scrap Catcher - $1150

Sumitomo FC-6+ Fiber Cleaver With Auto Collector

Features

  • One-action Cleaver for seamless application
  • Applicable Fiber
    Material: Silica glass
    Cladding diameter: 125 um
    Fiber count: Single fiber

Details

  • Single fiber adapter - Pre-fitted (AP-FC6M)
  • Cleave length - 5~20 mm (0.25) / 10~20 mm (0.9)
  • Cleave angle (Typical) - 0.5 degrees
  • Off-cut collector - Automatic (CU-FC6+)
  • Dimensions (W x D x H) - 100 × 81 × 63mm
  • Weight - 430g
  • Blade life - 54,000 fibers (2,500 fibers × 24 positions)

FC-6+ Spec sheet (pdf)

Sumitomo FC-6R+ Precision Automatic Blade Rotation Cleaver
With Fiber Scrap Catcher - $1350

Sumitomo FC-6+ Fiber Cleaver With Auto Collector

Features

  • One-action Cleaver for seamless application
  • Compatible with single fiber adapter and universal fiber holders
  • Auto rotating blade for stable cleaving
  • Applicable Fiber
    Material: Silica glass
    Cladding diameter: 125 um
    Fiber count: Single to 12-fiber ribbon

Details

  • Single fiber adapter - Pre-fitted (AP-FC6M)
  • Cleave length - 5~20 mm (0.25) / 10~20 mm (0.9) / 10mm (Ribbon)
  • Cleave angle (Typical) - 0.5 degrees
  • Off-cut collector - Automatic (CU-FC6+)
  • Dimensions (W x D x H) - 100 × 81 × 63mm
  • Weight - 440g
  • Blade life - 60,000 fibers (2,500 fibers × 24 positions)

FC-6+ Spec sheet (pdf)

Sumitomo FC-8R Precision Automatic Blade Rotation Cleaver - $1350

Sumitomo Electric FC-8R Cleaver

Features

  • Smart Cleave Counter
  • 1 to 12-Fiber Ribbon Cleaver
  • Automatic Blade Rotation
  • Ideal Cleaver for Mechanical Connectors
  • Ideal Cleaver for High Volume Precision Cleaving Applications in Any Environment
  • Compatible with All Sumitomo Electric Fusion Splicers
  • Precision Blade Performs 60,000 Cleaves

FC-8R Spec sheet (pdf)

Kit Includes

Precision Automatic Blade Rotation Cleaver, Operation Manual, Cleaning Brush, Hexagonal Wrench, AP-FC7 Single Fiber Adapter, Carrying Strap for Mobility

The FC-8R is Sumitomo Electric Lightwave’s newest 1-Step optical fiber cleaver with automatic blade rotation and a digital cleave counter. It is the ideal tool for use in fusion splicing, field termination, or any application that requires precision in a confined space. It has a simple cleaving operation that can be performed in the palm of the hand, allowing the user to take the cleaver to fiber in limited slack or cramped applications. A built-in extra large fiber scrap collector handles scrap fibers resulting from the cleaving process.

With each cleave, the blade is automatically rotated to a new scoring position on the cleaver blade. The automatic blade rotation feature ensures that the user receives the maximum number of precision cleaves from each cleaver blade.
