LIGHTEL DI-1000

DI-1000 Digital Inspection Probes

DI-1000 is Lightel's all digital video microscope probe. The DI-1000 connects directly to your PC through the computer's USB2.0 port. Featuring easy single finger focusing, a built-in image freeze/capture button, and detectable resolution to 0.5µ:m, the DI-1000 package includes our free ConnectorView&trade: (standard) software, providing digital zoom, image display, image capture, auto-calibration and basic analysis tools.

Lightel DI-1100 CONNECTOR INSPECTOR

Lightel DI-1000 Features

  • Fast, easy focus
  • One hand operation
  • Inspect patchcords (male) and in-adapter connectors (female)
  • Direct USB2.0 connection to PC
  • Powered by USB connection
  • Built-in freeze/capture button
  • Slim ergonomic design
  • Rapid tip change
  • Comprehensive line of tips
  • Free image capture and software included
  • Digital zoom
  • Pass/Fail analytical software option available

LIGHTEL DI-1000 Specifications

Field of View

Resolution
Operating Temperature
Storage Temperature
Focus Manual adjustment
Dimensions
Light source
Power Supply

~ 425µm x 320µm high magnification version
~ 620µm x 480µm wide view version
0.5µm detectable
0°C to 50°C
-20°C to 70°C
2mm max travel
35mm diameter x 175mm length (without tip)
Blue LED
USB port of PC

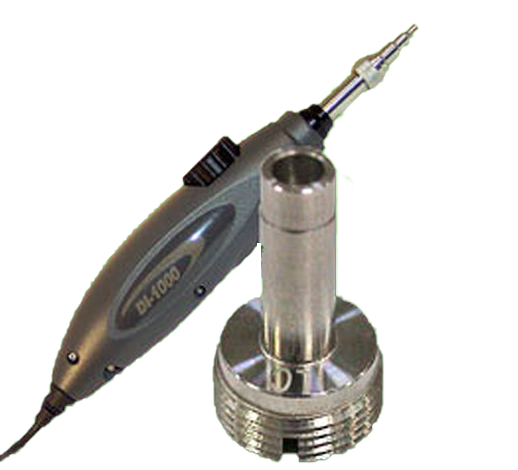

The DI-1000 uses Series 2 inspection tips, and can also use all our CI-1000 tips with an optional adapter.

Lightel ViewConn Series 2 Tips
